CLA-2982471 Claas Lexion 480, 470 combine harvester operator's manual
CLA-2982471 Claas Lexion 480, 470 combine harvester operator's manual
English

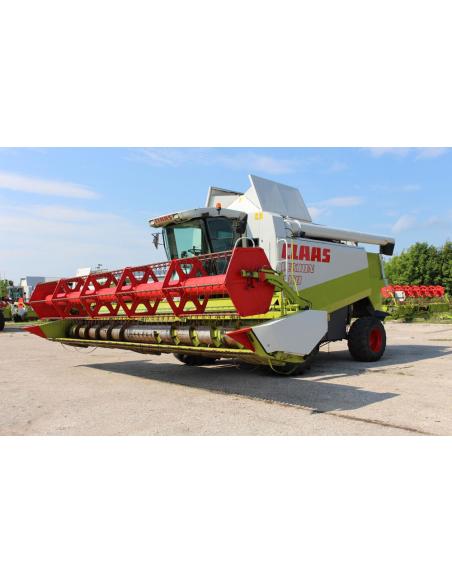

Claas Lexion 480, 470 combine harvester operator's manual

CLA-2982471
$15.90
No tax

Format: PDF

Pages: 474

File size: 14,89 MB

PDF document is available for instant download after purchase at any time. Can be downloaded and viewed on any device. Download free preview PDF file using link in Attachments TAB

CLA-2982471-preview.pdf - 748.98KB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for CLA-2982471 manual

  • Introduction
    • Introduction
  • Contents
    • Contents
  • General information
    • Road traffic regulations
    • Important
    • Identification plate / Serial number
  • Safety rules
    • Safety rules
    • Safety decals with pictorials
  • Specifications
    • Conversion factors
    • CLAAS LEXION 480
    • CLAAS LEXION 480
    • CLAAS LEXION 480
    • CLAAS LEXION 470
    • CLAAS LEXION 470
    • CLAAS LEXION 470
    • Safety features
    • Front attachments – weightsanddimensions
  • Prior to operation
    • Perform the following steps prior to operation
    • Cabin
    • Operator's platform
    • Driving the combine
    • Cutterbar hydraulic cylinders
    • Rear wheel drive axle
    • Side panels
    • Cabin and lighting
    • Towing / Crop inspection / Grain tank
    • Installing dual wheels LEXION 480
    • Additional weights LEXION 470
  • Installing and removing the cutterbar
    • Installing the cutterbar
    • Removing the cutterbar
  • Operation CEBIS
  • Operation – basic machine
    • Feeder housing
    • Threshing mechanism
    • Separation rotors LEXION 480
    • Separation rotors LEXION 470
    • Cleaning
    • Grain delivery
    • Straw chopper / Uni-Spreader LEXION 480
    • Straw chopper / Chaff spreader LEXION 470
    • Straw spreader
    • Sieve chart and suggested combine adjustments
    • Problem, cause and / or remedy – Basic machine
  • Maintenance – basic machine
    • Important maintenance instructions
    • Maintenance schedules and lubricants charts
    • Hydraulic system
    • Transmission / Brakes
    • Feeder housing
    • Elevator chains
    • Drive belts / drive chains – basicmachine
    • Cabin / Compressor-type air conditioner
    • Combine performance monitor / Fireextinguisher
    • Compressed air system (Extra equipment)
    • Straw chopper
    • Spreading unit
    • Speed monitoring
    • Winter storage instructions for combines
  • Maintenance – engine
    • Important maintenance instructions
    • Maintenance schedules and lubricants charts
    • Maintenance – engine
    • Cooling system
    • Dry-type air cleaner
    • Electrical equipment
    • Engine problems, cause and / or remedy
    • Engine winter storage
  • Lubrication chart
    • Lubricants and lubrication instructions
  • Index
    • Index
Document type
Operator's manual
Language
English
Machinery type
combine
