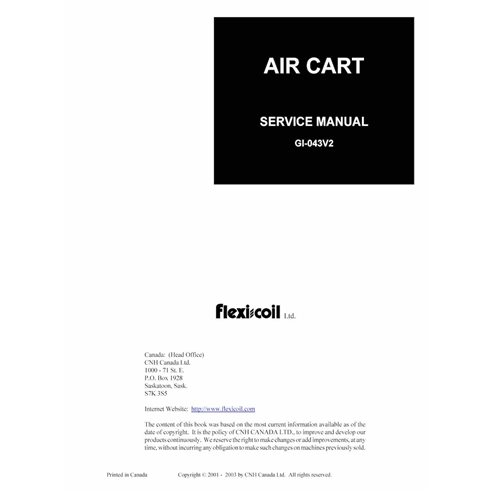

New Holland Flexi-Coil 1330 Plus / 40 Series / 50 Series air cart service manual
English

New Holland Flexi-Coil 1330 Plus / 40 Series / 50 Series air cart service manual

NH-GI-043V2
$31.90
No tax

Format: PDF

Pages: 758

File size: 58,54 MB

Service manual for New Holland AG Flexi-Coil 1330 Plus / 40 Series / 50 Series is available for instant download after purchase at any time. Can be downloaded and viewed on any device. Download free preview PDF file using link in Attachments TAB

Preview PDF - 4.35MB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for NH-GI-043V2 manual

  • Back to Main Menu
  • Title Page
  • Repair Parts Identification
    • 1330 Plus
    • Tow Behind
    • Tow Between
    • 40 Series
    • Tow Behind Air Carts
    • Tow Between Air Carts
    • 3rd Tank
    • 2640
    • Tow Behind Air Cart
    • Tow Between Air Cart
    • 50 Series
    • Tow Behind Air Cart
    • Tow Between Air Cart
  • Service Bulletins
    • 1330 Plus
    • 40 Series
    • 50 Series
    • Seed Treatment Unit
  • Table Of Contents
  • Section 1 - General Information
    • Contents of This Section
    • Important Information
    • Service Tools
    • Safety-Alert Symbol
    • General Safety Practices
    • Units of Measure
    • Abbreviations
    • Conversion Chart
    • Bolt Torque Information
    • Paint Touch-up Procedure
    • Tank Capacities and Air Cart Dimensions and Weights
  • Section 2 - Metering System
    • Contents of This Section
    • Troubleshooting
    • Meter Box
    • Nurse Option
    • Meter Rollers
    • 40 and 50 Series Variable Drive
    • Mechanical Drive
    • Manifold
  • Section 3 - Air System
    • Contents of This Section
    • Troubleshooting Table
    • 1330 Plus Air Dampers
    • 40 Series and 50 Series Air Dampers
    • 50 Series Air Plenum Update
    • Outlet Valves
    • 1330 Plus Air Cart Fan and Air Damper Setting
    • 40 Series .A Fan and Air Damper Setting
    • 2640 and 40 Series .B Air Cart Fan and Air Damper Setting
    • 50 Series Air Cart Fan and Air Damper Setting
    • Methods of Determining Adequate Carrying Velocities
    • Air Package Service
  • Section 4 - Electronic Control System
    • Contents of This Section
    • General Information
    • Indentifying Remotes
    • Definitions
    • Replacing Electrical Connectors
    • Temporary Harness Wiring Repair
    • Version Upates
    • Console Key and Switch Descriptions
    • System Diagrams
    • Component Descriptions
    • Air Control Remote Linear Actuator Calibration
    • Diagnostics and Alarms
    • Wiring Diagrams
    • Flow Monitoring System
    • Task Controller
    • NH3 Controller
    • Diagnosing a Problem
  • Section 5 - Hydraulic System
    • Contents of This Section
    • Troubleshooting
    • General Information
    • 1330 Plus Hydraulics
    • 40 Series Air Cart Hydraulics
    • 50 Series Air Cart Hydrualics
    • Fan Motors
  • Section 6 - Mechanical Systems
    • Contents of This Section
    • Tank Service
    • Tires
    • Rims
    • Hubs
    • Re-Packing Wheel Bearings
    • Spindles
    • Front Caster Pivot Housing Assembly
    • Front Caster Brake
    • Auger
    • Field Hitch
  • Section 7 - Fan Service
    • Contents of This Section
    • Single / Dual Fan Selection Guide
    • The SIngle Fan Assembly
    • The Dual Fan Assembly
  • Section 8 - Seed Treatment Unit
    • Contents of This Section
    • Troubleshooting
    • Theory of Operation
    • General Operation Notices
    • Seed Treatment Unit Components
    • How the Seed Treatment Unit Works
    • Treatment Rate Calculation
    • FlexControl System Diagram
    • Maintenance
    • Intake Manifold Replacement
    • Alarms
    • FlexControl Wiring Diagram
  • Section 9 - Fan Drive Options
    • Contents of This Seciton
    • 50 Series Engine Drive Option
    • 1330 Plus PTO Option
    • 40 Series PTO Option
  • Index
