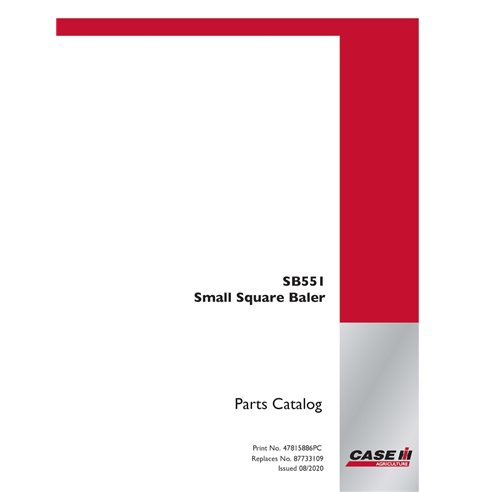

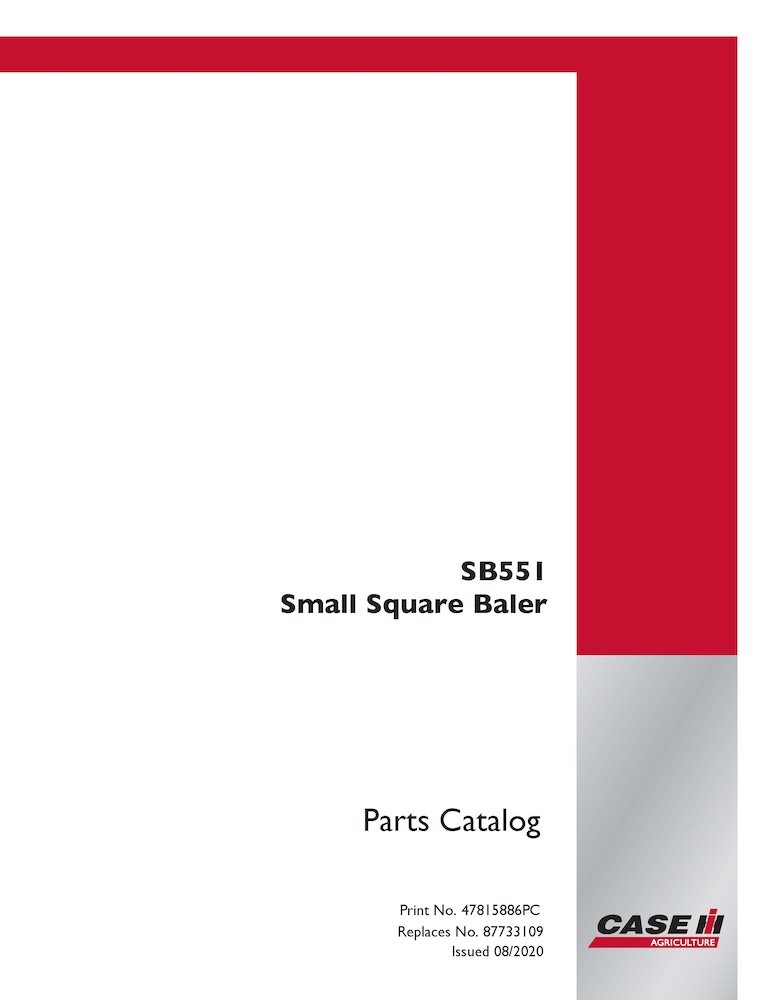

Case SB551 baler pdf parts catalog (47815886PC)
English

Case SB551 baler pdf parts catalog (47815886PC)

CASE-47815886PC-EN
$15.90
No tax

Item Number: 47815886PC

Models: SB551 Small Square Baler

Format: PDF

Type: Parts catalog

Pages: 330

File size: 7.98 MB

Language: English

Date: August 2020

Issue: Replaces: 87733109

CASE-47815886PC-EN-preview.pdf - 1.23MB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for CASE-47815886PC-EN manual

  • TABLE OF CONTENTS
  • SECTION INDEX
  • 00.000.31
    • PICTORIAL INDEX, POWER TAKEOFF & CLUTCH
  • 00.000.35
    • PICTORIAL INDEX, HYDRAULICS
  • 00.000.37
    • PICTORIAL INDEX, TOWING
  • 00.000.39
    • PICTORIAL INDEX, MAIN FRAME
  • 00.000.44
    • PICTORIAL INDEX, AXLE
  • 00.000.55
    • PICTORIAL INDEX, ELECTRICAL
  • 00.000.60
    • PICTORIAL INDEX, FEEDER
  • 00.000.62
    • PICTORIAL INDEX, BALE CHAMBER
  • 00.000.68
    • PICTORIAL INDEX, KNOTTER/WRAPPER
  • 00.000.70
    • PICTORIAL INDEX, BALE EJECTOR
  • 00.000.88
    • PICTORIAL INDEX, ACCESSORIES
  • 00.000.90
    • PICTORIAL INDEX, SHIELDS & DECALS
  • 00.100.01
    • INITIAL STOCKING LIST (ISL)
  • 00.100.03
    • LOCATION OF SERIAL AND PRODUCT IDENTIFICATION NUMBERS
    • SERVICE & MAINTENANCE
    • FILTERS & CAPACITIES, SB551
  • 05.100.03
    • FILTERS & CAPACITIES, SB551
    • IMPLEMENT POWER TAKE OFF
    • PTO & CLUTCH
  • 31.201.01
    • PTO & CLUTCH
  • 31.201.02
    • POWER TAKE OFF, FRONT
  • 31.201.03
    • POWER TAKE OFF, REAR
  • 31.201.04
    • POWER TAKE OFF POWER PIVOT
  • 31.201.05
    • POWER TAKE OFF CLUTCH
  • 31.201.06
    • POWER TAKE OFF, OVERRUNNING CLUTCH
  • 31.201.07
    • POWER TAKE OFF, CLUTCH PACK
  • 31.220.01
    • GEARBOX & FLYWHEEL
  • 31.220.02
    • GEARBOX, MAIN DRIVE
    • HYDRAULIC SYSTEMS
    • HYDRAULIC TONGUE SWING
  • 35.550.01
    • HYDRAULIC TONGUE SWING
  • 35.550.02
    • HYDRAULIC CYLINDER, TONGUE SWING
  • 35.550.03
    • HYDRAULIC PICKUP LIFT
  • 35.550.04
    • HYDRAULIC CYLINDER, PICKUP LIFT
  • 35.550.10
    • HYDRAULIC BALE TENSION
  • 35.550.11
    • HYDRAULIC BALE TENSIONING CYLINDER
  • 35.550.12
    • HYDRAULIC BALE TENSION OIL PUMP DRIVE
  • 35.550.13
    • HYDRAULIC BALE TENSIONING OIL PUMP
  • 35.550.14
    • HYDRAULIC BALE TENSION OIL PUMP MOUNTING
  • 35.550.15
    • HYDRAULIC BALE TENSION, SIDE DOORS
  • 35.550.16
    • HYDRAULIC CYLINDER, SIDE DOORS
  • 35.597.01
    • MANUAL OILER KIT
    • HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
    • BALL HITCH KIT
  • 37.100.01
    • BALL HITCH KIT
    • FRAMES AND BALLASTING
    • MAIN FRAME
  • 39.100.01
    • MAIN FRAME
  • 39.100.02
    • BALE CASE EXTENSION LESS HAY DOORS
  • 39.100.10
    • NEEDLE SLOT BAFFLE KIT
  • 39.110.01
    • TONGUE
  • 39.110.02
    • SAFETY CHAIN
  • 39.110.03
    • JACK
    • WHEELS
    • AXLE
  • 44.100.01
    • AXLE
  • 44.511.01
    • WHEEL
  • 44.511.03
    • PICKUP TIRE (PNEUMATIC) & WHEEL
    • ELECTRICAL SYSTEMS
    • WORKLAMPS KIT
  • 55.404.01
    • WORKLAMPS KIT
  • 55.404.02
    • LIGHTING CONTROL PANEL, WORKLAMPS
  • 55.404.03
    • ROAD LIGHTS KIT
  • 55.404.04
    • ROAD LIGHTS
  • 55.404.05
    • ROAD & WORK LIGHTS KIT
    • PRODUCT FEEDING
    • FEEDER FRAME
  • 60.220.01
    • FEEDER FRAME
  • 60.220.03
    • FEEDER SHIELDS
  • 60.220.04
    • FEEDER FINGER DRIVE
    • IDLER SPROCKET KIT
  • 60.220.05
    • FEEDER FINGERS
  • 60.220.06
    • FEEDER DRIVESHAFT
  • 60.220.07
    • PICKUP DRIVE
  • 60.220.08
    • PICKUP SHAFT & PICKUP FINGER
  • 60.220.09
    • PICKUP PIVOT PIPE
  • 60.220.10
    • WINDGUARD
    • PRESSING BALE FORMATION
    • HAY DOORS, HAY DOGS & BALE COUNTER
  • 62.140.01
    • HAY DOORS, HAY DOGS & BALE COUNTER
  • 62.140.02
    • METERING WHEEL
  • 62.140.03
    • BALE TENSION RAIL & NEEDLE YOKE GUARD
  • 62.140.04
    • BALE CHAMBER BOTTOM KIT
  • 62.150.01
    • PLUNGER RAILS & SAFETY LATCH
  • 62.150.02
    • PLUNGER
  • 62.150.03
    • STATIONARY KNIFE, NEEDLE YOKE ROD & HAY WEDGES
    • TYING/WRAPPING
    • TWINE KNOTTER
  • 68.180.02
    • TWINE KNOTTER
  • 68.180.04
    • TWINE KNOTTER FRAME
  • 68.180.05
    • TWINE BOX MOUNTING
  • 68.180.06
    • TWINE BOX & NEEDLES
  • 68.180.07
    • TWINE FINGERS
  • 68.180.08
    • TWINE FINGER & LEVER
    • EJECTION
    • BALE CHUTE, QUARTER TURN
  • 70.280.01
    • BALE CHUTE, QUARTER TURN
  • 70.280.02
    • BALE CHUTE, TRIPLE PURPOSE
    • ACCESSORIES
    • DIA KIT, HYDRAULIC TONGUE SWING
  • 88.035.01
    • DIA KIT, HYDRAULIC TONGUE SWING
  • 88.035.02
    • DIA KIT, HYDRAULIC PICKUP LIFT
  • 88.055.01
    • DIA KIT, WORK LIGHT
  • 88.055.02
    • DIA KIT, ROAD LIGHT, WORK LIGHT
  • 88.088.01
    • DIA KIT, QUARTER-TURN BALE CHUTE
  • 88.100.01
    • TOOL BOX
  • 88.510.02
    • GRASS HAY FEEDER KIT
  • 88.510.03
    • LH FEEDER DEFLECTOR KIT
  • 88.510.04
    • DELUXE BALE LENGTH ADJUSTER KIT
  • 88.511.01
    • KIT TRIPLE PURPOSE BALE CHUTE
  • 88.511.02
    • KNOTTER KNIFE KIT
    • PLATFORM, CAB, BODYWORK AND DECALS
    • SHIELDS, REAR
  • 90.105.01
    • SHIELDS, REAR
  • 90.105.03
    • SHIELDS, FRONT
  • 90.105.06
    • SHIELDS, LH
  • 90.105.10
    • HOUSING, FEEDER TOP
  • 90.108.01
    • DECALS
