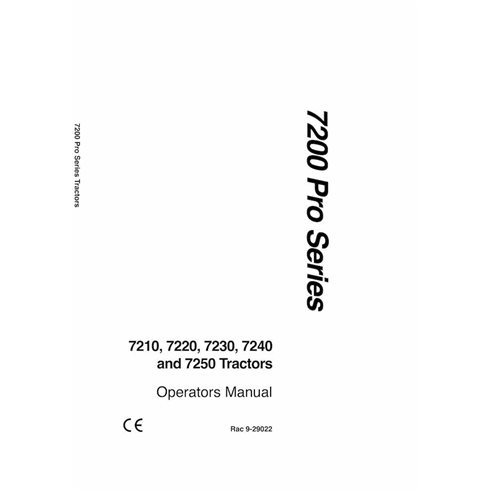

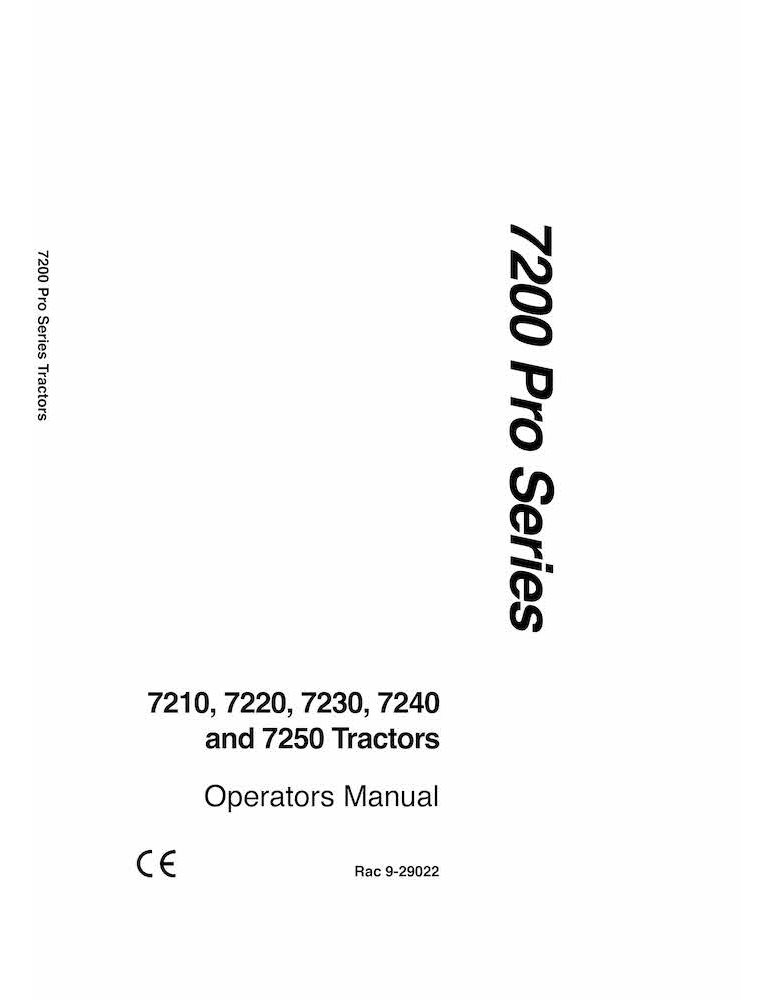

Case 7210, 7220, 7230, 7240, 7250 tractor pdf operator's manual
English

Case 7210, 7220, 7230, 7240, 7250 tractor pdf operator's manual

CASE-9-29022-OM
$16.90
No tax

Format: PDF

Pages: 299

File size: 43.05 MB

Language: English

Models: 7200 Pro Series: 7210, 7220, 7230, 7240, 7250

CASE-9-29022-OM-EN-preview.pdf - 4.54MB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for CASE-9-29022-OM-EN manual

  • GENERAL TABLE OF CONTENTS
  • TO THE OWNER
  • PRODUCT IDENTIFICATION AND SERIAL NUMBERS
  • MACHINE COMPONENTS
  • SAFETY
    • Intended Use
  • DECALS
  • ROLL OVER PROTECTIVE STRUCTURE (ROPS)
    • Tractor Roll Over
    • Safety Rules
    • ROPS Label
  • AUTOMATIC SHUTDOWN SYSTEM
    • Automatic Shutdown Override Switch
  • DIGITAL INSTRUMENT CLUSTER
    • General Arrangement and Features
    • Audible Alarm
    • English or Metric Units
    • Accessory Mode
    • Service Hour Indicator
    • Indicator Lamps (LED' s)
    • Bar Graph Display LCD' s
    • Function and Programming Push Buttons
    • PTO RPM Push Button
    • Instrument Panel and Foot Pedals
    • RH Console
    • Secondary Electrical Panel
    • Front Headliner
    • Recirculation Louver Control
    • Cab Defroster Control
    • Steering Column Tilt
    • Telescopic Steering Column
    • Cab Door Lock
    • Rear View Mirrors
    • Remote Hitch Switch
    • Deluxe Operators Seat with Air Suspension
    • True Ground Speed Sensor (If Equipped)
  • BEFORE STARTING THE ENGINE
  • SERVICE INDICATOR LAMPS AND BAR GRAPH DISPLAYS
  • RUN-IN PROCEDURE
    • Load
    • No Load
    • Compressor Belt Tension
    • Differential Oil MFD
    • Planetary Oil MFD
    • Rear Wheel Bolts
    • Front Wheel Bolts and Nuts MFD
  • NORMAL STARTING PROCEDURE
  • STOPPING THE ENGINE
  • COLD TEMPERATURE OPERATION
    • Coolant Heater (If Equipped)
    • Oil Pan Heater (If Equipped)
    • Engine Starting Using Ether Starting Fluid
  • TOWING
    • With Engine Running
    • Engine Not Running
  • HOW TO TRANSPORT THE TRACTOR
  • POWER SHIFT TRANSMISSION
    • Transmission Operation
    • Manual Shuttle Shift (If Equipped)
    • Park Lock
    • Inching Pedal
    • Creeper Speed Operation (If Equipped)
  • DIFFERENTIAL LOCK
  • MFD OPERATION
    • MFD Assisted Stops
    • Engine Hour Indicator
    • Engine Overspeed Indicator
  • CAB AIR FLOW ARRANGEMENTS
    • Controlled Pressure and Air Flow with Air Conditioner
    • With Heat Only
  • AIR CONDITIONER OPERATION
  • POWER TAKEOFF
    • Operating the Power Takeoff (PTO)
    • PTO Operating Safety
    • Safety Guard
    • Connecting to PTO
  • DRAWBAR
    • Sliding Drawbar
  • TRACTOR WARNING LAMPS AND DIRECTION TURN SIGNALS
    • Amber Warning Lamps
    • Turn Signal Indicator
    • Drawbar Clevis
    • Connecting Implement to Drawbar
  • THREE POINT HITCH PREPARATION
  • HITCH SYSTEM ADJUSTMENTS
    • Upper and Lower Link Adjustment
    • Leveling an Implement
    • Sway Blocks
    • Adjustment Blocks
    • Lower Link Mechanical Float
    • Remote Hitch Switch Operation
    • Operators Controls
    • Operating in Position Control
    • Operating in Load Control
    • Electronic Hitch Diagnostic Monitor
    • Electronic Hitch Diagnostic Codes
    • Hitch Control Bypass
  • REMOTE HYDRAULICS PREPARATION
    • Hose Couplers
    • Connecting Remote Hoses
    • Variable Flow Control
    • Remote Valve Load Check
    • Neutral Lock for Remote Hydraulic Control Levers
    • Float Operation
    • Low Pressure Return Circuit (If Equipped)
    • Hydraulic Motors
  • LOADER OPERATION
  • CHEMICAL TANK MOUNTING
    • Side Mounted Tanks
    • Front Mounted Tank
  • AUXILIARY POWER CONNECTIONS
  • TRUE GROUND SPEED SENSOR HARNESS
  • CAB REAR ACCESS PANEL
  • MONITOR MOUNTING
    • Long Monitor Mounting Kit
    • Short Monitor Mounting Kit
  • INSTRUMENT CLUSTER PROGRAMMING
    • Programming in English or Metric Units
    • Programming Equipment Width
    • Programming Wheel Slip Bar Graph
    • Programming Ground Speed Calibration Number
    • Static Calibration Code Number
    • Check Air Pressure
    • Tire Load and Inflation
    • Metric
    • Tire Inflation Procedure
    • Tire Installation
    • Solid Steel Rear Wheel
    • Rear Wheel
    • Front Wheel, Disc and Rim Bolt Mounting Torques
    • FRONT WHEEL FENDERS (If Equipped)
    • Fender Mounting Components
    • Fender Mounting Positions
  • TIRE SIZE COMBINATIONS
    • Mechanical Front Drive Tractors
    • Tractor Weight Distribution
    • Measuring Wheel Slip
    • Front End Weights
    • Wheel Weight Bolt Torques
    • Wheel Weight Installation Diagram
    • Rear Wheel Weights Universal Cast (If Equipped)
    • Tire Liquid Weight
  • LUBRICATION/MAINTENANCE CHART
  • GREASE FITTINGS 10 HOURS
  • GREASE FITTINGS 50 HOURS (MFD AXLE)
  • SYSTEM CAPACITIES
  • HOOD AND SIDE PANELS
  • SERVICE HOUR INTERVAL
    • Programming Service Hour Interval
    • Engine Oil Level
    • Oil Viscosity/Temperature Usage Recommendation
    • Engine Oil Change
    • Engine Oil Filter
    • Deaeration Tank Coolant Level
    • Pressure Cooling System
    • Coolant Solutions
    • Cleaning the Cooling System
    • Filling the Cooling System
    • Coolant Filter and Conditioner
    • Grille Screens and Radiator Area
    • Thermostat Check
    • Viscous Fan Drive
    • Diesel Fuel Specifications
    • Fuel Conditioner
    • Fuel System Water Drain
    • Fuel Filter Replacement
    • Fuel System Air Removal
    • Fuel Cooler
  • AIR INDUCTION SYSTEM
    • Service Intervals
    • Air Filter Service Monitor
    • Air Filter
    • Air Filter Service
    • Transmission Oil Level
    • Transmission Oil Change
    • Hydraulic System Filters
    • Hydraulic System Breather
    • Hydraulic System Suction Filter Screen
    • Accumulators
  • COMPRESSOR BELT AND FAN/ALTERNATOR BELT
    • Compressor Belt Check and Adjustment
    • Compressor Belt Replacement
    • Fan/Alternator Belt Replacement
  • PNEUMATIC TRAILER BRAKE COMPRESSOR BELT
    • Air Compressor Belt Check and Adjustment
    • Air Compressor Belt Replacement
  • HOOD LATCH ADJUSTMENT ENGINE VALVE ADJUSTMENT
    • Recirculation Air Filters
    • Intake Air Filter Service
    • Operators Seat Cleaning
    • Park Brake Adjustment
    • Park Brake Adjustment with Pneumatic Trailer Brake
    • Emergency Steering System
    • Emergency Steering System Inspection Procedure.
    • Circuit Breakers
    • Fuses
    • Lamps and Bulbs
    • Accessory Connectors
    • Fuses and Circuit Breakers
  • BATTERIES
    • Access to Batteries
    • Battery Cables and Terminals
    • Removal and Installation of Batteries
    • When Batteries are not in Use
    • Auxiliary Battery Connections
  • BULB AND LAMP REPLACEMENT
    • Front and Side Work Lamps
    • Cab Roof and Lower Work Lamps
    • Instrument Cluster Lamps
    • Tail, Stop and Indicator Lamps
    • Side Lamps and Turn Indicators
    • Head Lamps
    • Number Plate Lamp
    • Rotating Beacon Lamp (If Equipped)
    • Console Lamp
    • Front Console Lamp
    • Dome Lamp
  • DIESEL ENGINE
    • Lubrication System
    • Fuel System
    • Air Intake System
    • Cooling System
    • Brakes
    • Park Lock System
    • Park Brake
    • Front Axle Differential and Planetaries
    • Differential Lock
    • Hydrostatic Power Steering
    • Hitch System
    • Remote Hydraulic System
    • Power Takeoff
    • Drawbar
    • Model 7220 Mechanical Front Drive (MFD)
    • Model 7230 Mechanical Front Drive (MFD)
    • Model 7240 Mechanical Front Drive (MFD)
    • Model 7250 Mechanical Front Drive (MFD)
    • Maximum Recommended Operating Weights
  • DETAIL INDEX
