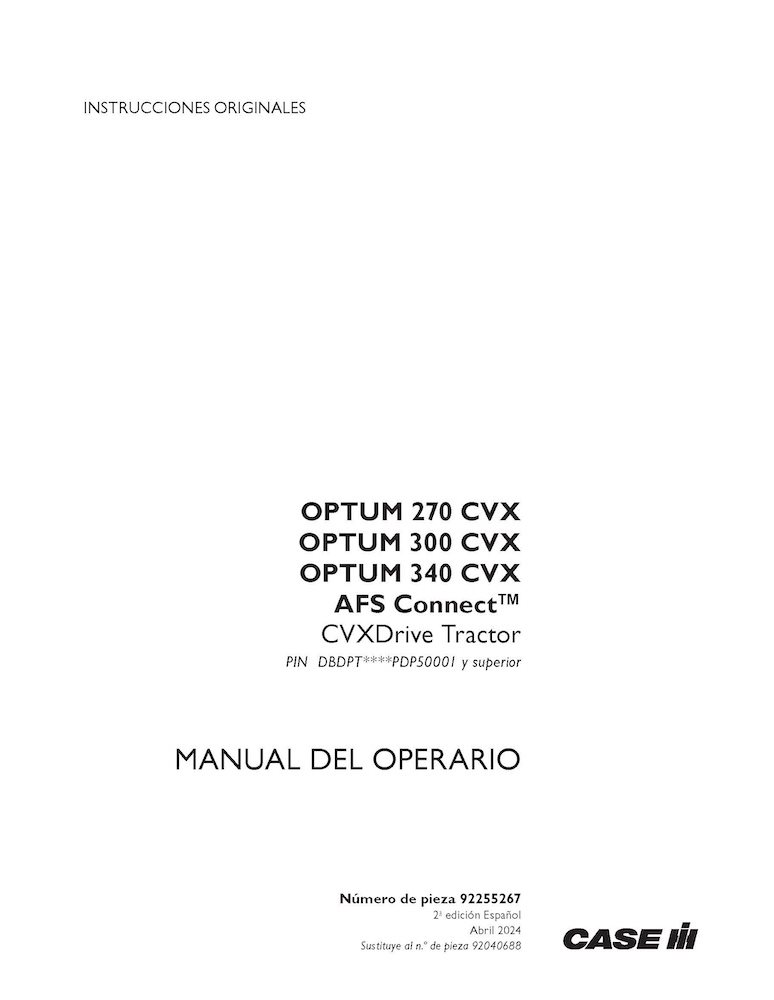

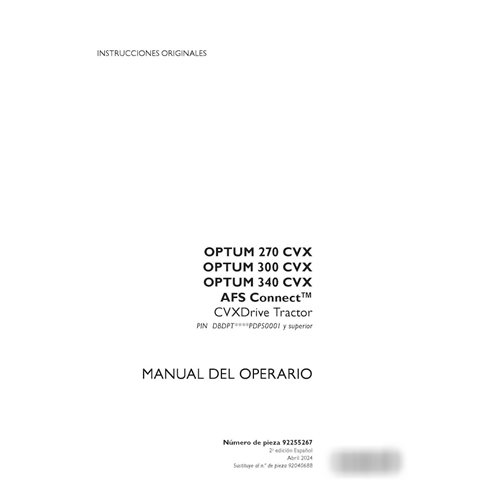

Case Optum 270 CVX, 300 CVX, 340 CVX AFS Connect CVXDrive Tier 4B, PIN DBDPT****PDP50001- tractor pdf operator's manual ES (9225
Spanish

Case Optum 270 CVX, 300 CVX, 340 CVX AFS Connect CVXDrive Tier 4B, PIN DBDPT****PDP50001- tractor pdf operator's manual ES (9225

CASE-92255267-OM-ES
$19.90
No tax

Item Number: 92255267

Models: Optum 270CVX, 300CVX, 340 CXV AFS Connect CVXDrive Tractors

Format: PDF

Type: Operator's manual

Pages: 788

File size: 45.98 MB

Language: Spanish

Date: April 2024

Issue: 2nd edition, Replaces part number 92040688

P.I.N.: PIN DBDPT****PDP50001 and above

CASE-92255267-OM-ES-preview.pdf - 1.45MB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for CASE-92255267-OM-ES manual

  • INFORMACIÓN GENERAL
    • Nota para el propietario
    • Uso previsto
    • Compatibilidad electromagnética (EMC)
    • Abreviaturas para las unidades métricas e imperiales
    • Identificación de productos
    • Identificación del motor
    • Identificación del sistema motriz
    • Identificación de la cabina
    • Almacenamiento del manual del operador
    • Programación de las funciones del tractor
    • Antes de poner en marcha el tractor
    • Orientación de la máquina
    • Sistema de reducción catalítica selectiva (SCR)
    • Declaración de garantía de emisiones
  • INFORMACIÓN DE SEGURIDAD
    • Definiciones de las señales
    • Normativa de seguridad
    • Equipo de protección personal
    • Asiento de formación
    • Calzos de ruedas
    • Salida de emergencia
    • Protección ofrecida por el tractor
    • Prevención de quemaduras
    • Prevención de incendio o explosiones
    • Extintor de incendios
    • Sustancias peligrosas
    • Ecología y medioambiente
    • Estabilidad de la máquina
    • Etiquetas de seguridad
    • Puntos de elevación del tractor
  • CONTROLES E INSTRUMENTOS
    • ACCESO A PLATAFORMA DEL OPERADOR
    • ASIENTO DEL OPERADOR
    • ASIENTO DEL INSTRUCTOR
    • CONTROLES DE AVANCE
    • CONTROLES DEL LADO IZQUIERDO
    • CONTROLES DEL LADO DERECHO
    • CONTROLES SUPERIORES
    • CONTROLES EXTERIORES
    • PANTALLA
    • TABLERO DE MANDOS
    • CONFIGURACIÓN DEL TRACTOR
  • INSTRUCCIONES DE FUNCIONAMIENTO
    • PUESTA EN SERVICIO DE LA UNIDAD
    • ARRANQUE DE LA UNIDAD
    • PARADA DE LA UNIDAD
    • DESPLAZAMIENTO DE LA UNIDAD
    • ESTACIONAMIENTO DE LA UNIDAD
  • OPERACIONES DE TRANSPORTE
    • TRANSPORTE POR CARRETERA
    • PREPARACIÓN PARA TRANSPORTE POR CARRETERA
    • TRANSPORTE DE RECUPERACIÓN
  • OPERACIONES DE FUNCIONAMIENTO
    • INFORMACIÓN GENERAL
    • TRANSMISIÓN
    • TOMA DE FUERZA (TDF) TRASERA
    • TOMA DE FUERZA DELANTERA
    • ENGANCHE TRASERO
    • ENGANCHE DELANTERO
    • VÁLVULAS DE CONTROL REMOTO ELECTROHIDRÁULICAS (si las hubiera)
    • Funciones automáticas de la cabecera
    • PUERTO DE ALIMENTACIÓN HIDRÁULICA REMOTA
    • BARRAS DE TRACCIÓN y ACCESORIOS DE REMOLQUE
    • SISTEMA DE FRENADO DEL REMOLQUE
    • RUEDAS Y NEUMÁTICOS
    • LASTRE Y NEUMÁTICOS
    • CONEXIONES DE ALIMENTACIÓN AUXILIAR
  • MANTENIMIENTO
    • INFORMACIÓN GENERAL
    • CUADRO DE MANTENIMIENTO
    • CUANDO SE ENCIENDAN LAS LUCES DE ADVERTENCIA
    • PRIMERAS 10 HORAS
    • CADA 10 HORAS O TODOS LOS DÍAS
    • PRIMERAS 50 HORAS
    • CADA 50 HORAS
    • CADA 150 HORAS
    • CADA 375 HORAS
    • CADA 750 HORAS
    • CADA 750 HORAS O UNA VEZ AL AÑO
    • CADA 750 HORAS O CADA 2 AÑOS
    • CADA 1500 HORAS O UNA VEZ AL AÑO
    • CADA 1500 HORAS O CADA 2 AÑOS
    • CADA 2 AÑOS
    • CADA 1500 HORAS O CADA 4 AÑOS
    • CADA 3750 HORAS O CADA 3 AÑOS
    • CADA 3750 HORAS O CADA 4 AÑOS
    • MANTENIMIENTO GENERAL
    • ALMACENAMIENTO
  • SOLUCIÓN DE PROBLEMAS
    • RESOLUCIÓN DE CÓDIGOS DE AVERÍA
    • ALARMA(S)
    • SÍNTOMA(S)
  • CARACTERÍSTICAS TÉCNICAS
    • Dimensiones generales
    • Radio de giro mínimo
    • Dimensiones del eje
    • Ángulo de funcionamiento máximo
    • Pesos de funcionamiento máximos permitidos
    • Pesos del tractor
    • Fluidos, combustibles y lubricantes
    • Motor
    • Sistema de combustible
    • Sistema de filtro del aire
    • Sistema de refrigeración
    • Transmisión
    • Toma de fuerza (TDF) trasera
    • Toma de fuerza (TDF) delantera
    • Sistema hidráulico
    • Enganche de tres puntos trasero
    • Enganche de tres puntos de la parte delantera
    • Válvulas de control remoto
    • Válvula de control remoto delantera
    • Frenos
    • Dirección
    • Equipo eléctrico
    • Pares de apriete mínimos de la tornillería
  • ACCESORIOS
    • Retrovisores
    • Cámaras (si está instalado)
    • Sincronización de cámara inalámbrica
    • Placas indicadoras de bordes
    • Baliza giratoria
    • Barra de luz municipal (si está instalada)
    • Acoplamiento neumático auxiliar
  • FORMULARIOS Y DECLARACIONES
    • Declaración de conformidad del módulo del sistema telemático
Document type
Operator's manual
Language
Spanish
Machinery type
tractor
CASE-92255267-OM-ES-preview.pdf - 1.45MB
