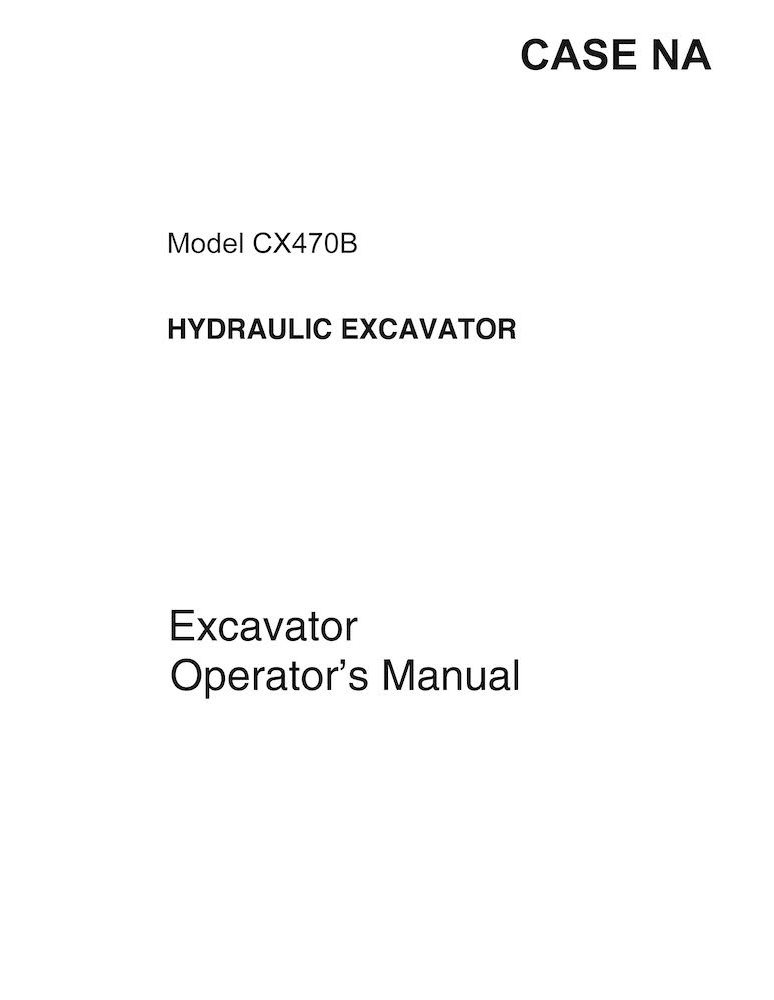

Case CX470B excavator pdf operator's manual

Table of Contents for CASE-CX470B-OM-EN manual

• WARNING
• To the Owner
• Safety Labels
• For Safe Driving
• Table of Contents
• Safety Section
  • Safety
  • You must read this safety section carefully. This section contains important safety information.
• Instruments and Controls
  • Instruments and Controls
• Operating Instructions
  • Operating
• Inspections and Maintenance
• Maintenance
  • General Cautions
  • Periodic Maintenance Check List Daily Inspections (Prior to Operation)
  • Periodic Maintenance Check List Periodic Maintenance Check List
  • Periodic Maintenance Check List Fuel / Lubricants for Different Ambient Temperature Settings
  • Periodic Maintenance Check List Genuine CASE Company LLC Parts and Elements
  • Periodic Maintenance Check List Disposable Items
  • Grease / Oil and Elements
  • Inspection Prior to Operation Inspections Prior to Operation
  • Inspections Prior to Operation
  • Greasing Attachments Greasing Front Attachment Pins • Maintenance: every 50 hours • Maintenance for EM System: every 1000 hours
  • Greasing Attachments
  • Fuel System Fuel
  • Fuel System
  • Fuel System Fuel Refilling and Fuel Level Checking
  • Drainage of Water and Sediments in the Fuel Tank • Maintenance: every 10 hours
  • Fuel System Draining Water from the Pre Fuel Filter • As Necessary
  • Fuel System Pre Fuel Filter Replacement • Maintenance: every 250 hours
  • Fuel System Draining Water from the Fuel Filter (Main) •Daily Inspections(Prior to Operation)
  • Fuel System Fuel Filter (Main) Replacement •Maintenance: every 500 hours
  • Fuel System Bleeding Air from the Fuel System
  • Engine Engine Oil Replacement • Maintenance: every 500 hours Engine Oil Filter Replacement • Maintenance: every 500 hours
  • Engine
  • Engine Cooling System Inspecting and Refilling Coolant • Daily Inspection
  • Engine Replacing the Coolant • Long-Life Coolant: Every 2 Years • When Anti-Freeze is Used, Twice a Year: Spring and Autumn
  • Engine Cleaning and Inspecting the Radiator Net and Fin • Maintenance: every 250 hours
  • Engine Cleaning and Replacing the Air Cleaner (double elements) • Cleaning: every 250 hours • Replacement: every 1000 hours
  • Engine Inspection and Adjustment of Alternator Drive Belt • Maintenance: every 250 hours
  • Bolt Torque Bolt and Nut Torque • After the first 50 hours/Maintenance: every 250 hours
  • Bolt Torque
  • Hydraulic Oil
  • Refilling Hydraulic Oil
  • Hydraulic Oil Level Inspection • Daily Inspection
  • Hydraulic Oil Draining Water and Sediment from the Hydraulic Oil Tank • Maintenance: every 250 hours
  • Hydraulic Oil Hydraulic Oil Management • Maintenance: every 1,000 hours Hydraulic Oil Replacement • Maintenance: every 5,000 hou
  • Hydraulic Oil Bleeding Air from the Hydraulic Components
  • Air Bleeding from Hydraulic Pump
  • Air Bleeding Procedures
  • Hydraulic Oil Air Bleeding from Cylinder
  • Air Bleeding from Swing Motor
  • Hydraulic Oil Cleaning and Replacing Suction Filter • Cleaning: every 2,000 hours • Replacement: every 5,000 hours
  • Replacing Return Filter • Initial change after the first 250 hours • Maintenance: every 2,000 hours
  • Hydraulic Oil Replacing Air Breather Element • Maintenance: every 1,000 hours
  • Replacing Pilot Oil Filter Element • Initial change after the first 250 hours • Maintenance: every 2,000 hours
  • Hydraulic Oil Replacement Intervals for Hydraulic Oil and Filters when Using Breaker
  • Checking Hoses and Lines • Daily inspections • Maintenance: every 50 hours
  • Battery
  • Battery Inspection and Charge • Maintenance: every 250 hours
  • Upper Frame Turntable Bearing Greasing • Maintenance: every 500 hours
  • Greasing Swing Ring Gear • Maintenance: every 500 hours
  • Swing Unit
  • Oil Level Inspection and Refilling of Swing Reduction Gear • Maintenance: every 250 hours
  • Oil Replacement for Swing Reduction Gear • After first 250 hours • Maintenance: every 1,000 hours
  • Swing Unit Greasing Swing Reduction Gear • Maintenance: every 2,000 hours
  • Travel Unit Travel Reduction Gear
  • Oil Replacement for Travel Reduction Gear • After first 250 hours • Maintenance: every 2,000 hours
  • Oil Level Inspection and Refilling of Travel Reduction Gear • Maintenance: every 250 hours
  • Travel Unit Inspecting Upper/Lower Take-up Roller (Idler Wheel) • As necessary
  • Inspection and Tightening of Shoe Plate • As necessary
  • Cleaning Crawler • As necessary
  • Travel Unit Inspection and Adjustment of Track Shoe Tension • As necessary
  • Bucket Replacing Bucket Teeth: Heavy Digging Type • As necessary
  • Bucket Adjustment of Bucket Backlash • As necessary
  • Air Conditioner Inspection and Care of Air Conditioner
  • Air Conditioner
  • Routine Replacement Safety Parts
  • Troubleshooting
  • Contacting Us
• Specifications
  • Conversion Factors CONVERSION FACTORS
  • Specifications
• Optional Components
  • Selector Valve Selector valve (2-way)
  • Breakers Handling the Breaker (Attachment)
  • Breakers
  • When Using a Hydraulic Breaker
  • Breakers Importance of Hydraulic oil Control
  • Crusher Using the Crusher (Attachment)
  • Crusher
  • Special Attachments
  • Special Attachment Controlling Rocker switch
  • Special Attachment Operating the Special attachment
  • CTWT How to fit counter weight (CTWT)
  • CTWT
  • CTWT How to remove counter weight (CTWT)
