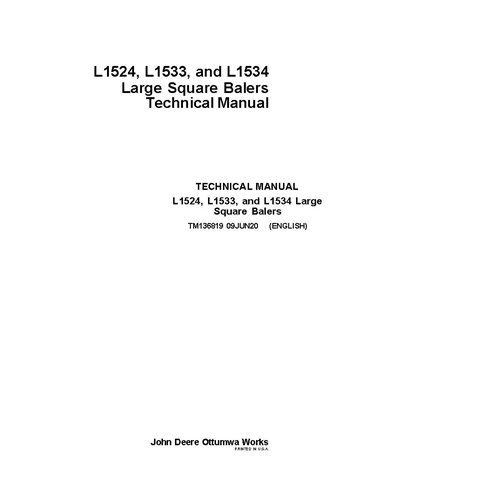

TM136819 John Deere L1524, L1533, and L1534 large square baler technical manual - all inclusive (TM136819)
English

John Deere L1524, L1533, and L1534 large square baler technical manual - all inclusive (TM136819)

TM136819
$29.90
No tax

Item Number: TM136819

Models: L1524, L1533, and L1534 Large Square Balers, Repair and Diagnostics

Format: PDF

Type: Technical manual - All inclusive

Pages: 1172

File size: 39.91 MB

Language: English

Date: June 2020

TM136819-preview.pdf - 2.16MB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for TM136819 manual

  • Contents
  • Foreword
  • Section 10 General
    • Contents
    • Safety
    • Specifications
    • General Information
    • Lubrication
  • Section 20 Drive Train
    • Contents
    • Diagnosing Malfunctions
    • Drive Train Protection
    • Gear Case Repair
    • Driveline Repair
  • Section 30 Auto Grease System
    • Contents
    • General Information
    • Diagnosing Malfunctions
    • Auto Grease Repair
    • Divider Blocks
  • Section 40 Electrical System
    • Contents
    • Connector Repair
    • Tests and Adjustments
    • Power Distribution
    • ISOBUS Monitor
    • Wire Harness Routing
    • Sensors and Switches
  • Section 50 Hydraulic System
    • Contents
    • General Information
    • Diagnosing Malfunctions
    • Hydraulic Functional Schematics
    • Valves, Pumps and Motors
    • Cylinders
    • Accumulators
    • Miscellaneous
  • Section 55 Prechopper (If Equipped)
    • Contents
    • Prechopper Repair
    • Prechopper Adjust
    • Diagnosing Prechopper
    • Prechopper Hydraulic Schematic
  • Section 60 Pickup and Rotor
    • Contents
    • General Information
    • Diagnosing Malfunctions
    • Pickup Repair
    • Rotor Repair
  • Section 70 Precutter (If Equipped)
    • Contents
    • General Information
    • Diagnosing Malfunctions
    • 10-Knives Precutter (S.N. -000624)
    • 15-Knives Precutter (S.N. 000550- )
    • 23-Knives Precutter
  • Section 80 Feeding System
    • Contents
    • General Information
    • Diagnosing Malfunctions
    • Adjust Feeding System
    • Feeding System Repair
  • Section 90 Bale Chamber
    • Contents
    • General Information
    • Diagnosing Malfunctions
    • Plunger
    • Tension Panels and Channels
    • Bale Chamber
    • Last Bale Ejection
    • Bale Chute
  • Section 100 Binding System
    • Contents
    • General Information
    • Diagnosing Malfunctions
    • Knotter Repair
    • Knotter System Repair
    • Needle Repair
    • Replacing Brakes
    • Knotter Trip Mechanism
    • Adjusting Knotter
    • Adjusting Needles
    • Knotter Fan
  • Section 110 Brakes and Suspension
    • Contents
    • General Information
    • Diagnosing Malfunctions
    • Pneumatic Brake System (If Equipped)
    • Hydraulic Brake System
    • Brake Components
    • Wheels, Axles, and Steering
  • Section 120 Body Repair
    • Contents
    • Front Shield and Gull Wings Doors
    • Twine Boxes and Work Platforms
    • Fiberglass Repair
  • Section 199 Dealer Fabricated Tools
    • Contents
    • Dealer Fabricated Tools
  • Section 211 Diagnostic Trouble Codes
    • Contents
    • General Information
    • Diagnostic Trouble Codes
  • Section 249 Electrical Component Information
    • Contents
    • Electrical Assemblies
    • Sensors
    • Lights
    • Fuses
    • Motors
    • Interconnects and Ground Points
    • Electronically Actuated Mechanical Devices
  • Section 279 Hydraulic Component Information
    • Contents
    • Accumulator
    • Sensor or Gauge
    • Cylinder, Actuator, or Piston
    • Valve Block, Assembly, or Gear Case
    • Motor
    • Pump
    • Reservoir or Tank
    • Valve
    • Diagnostic Receptacle or Coupler
    • Solenoid Valve
