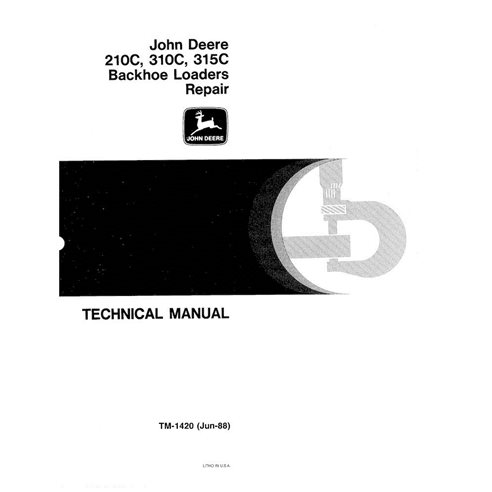

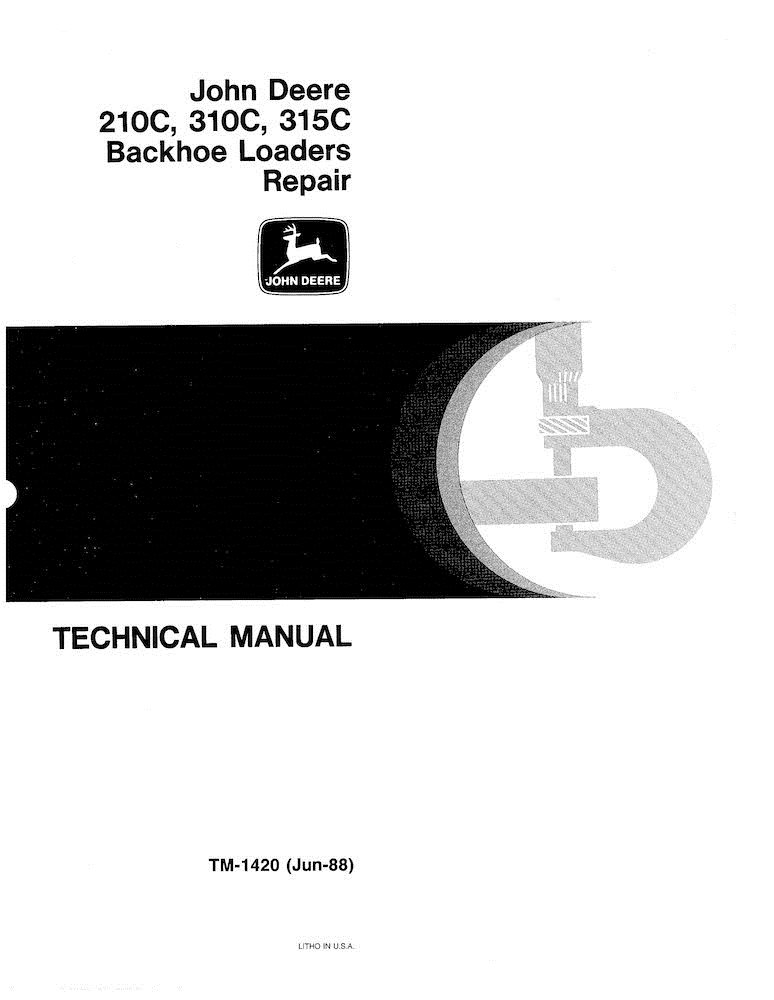

John Deere 210C, 310C, 315C backhoe loader repair technical manual (TM1420)
Format: PDF
Pages: 804
File size: 67.36 MB
Language: English
Models: 210C, 310C, 315C
Table of Contents for TM1420 manual
- Contents
- Introduction
- General Information
- Safety Information
- General Specifications
- Torque Values
- Fuels and Lubricants
- Inspection and Procedure
- Wheels
- Powered Wheels and Fastenings
- Non-Powered Wheels and Fastening
- Axles and Suspension Systems
- Non-Powered Wheel Axles
- Powered Wheel Axle (MFWD)
- Axle Shaft, Bearings, and Reduction Gears
- Transmission
- Removal and Installation
- Control Linkage
- Input Driveshaft and U-Joints
- Gears, Shafts, Bearings, and Power Shift Clutch
- Hydraulic System
- Engine
- Removal and Installation
- Fuel Injection System
- Starting Motor and Fastenings
- Engine Auxiliary Systems
- Cold Weather Starting Aids
- Engine Cooling System
- Speed Controls
- Intake System
- External Fuel Supply System
- Torque Converter
- Turbine, Gears and Shaft
- Steering System
- Hydraulic System
- Service Brakes
- Active Elements
- Hydraulic System
- Park Brake
- Active Elements
- Controls Linkage
- Equipment Attaching
- Removal and Installation
- Hitches
- Hydraulic System
- Electrical System
- Batteries, Supports and Cables
- Alternator, Regulator, and Charging System Wiring
- Lighting System
- Wiring Harness and Switches
- System Controls
- Instrument and Indicators
- Motors and Actuators
- Frame, Chassis or Supporting Structure
- Frames
- Chassis Weights
- Operator's Station
- Removal and Installation
- Operator Enclosure
- Seat and Seat Belt
- Heating and Air Conditioning
- Safety, Convenience and Miscellaneous
- Horn and Warning Devices
- Main Hydraulic System
- Hydraulic System
- Hydraulic Reservoir Suction Screen
- Oil Cooler
- Oil Cooler Bypass Valve
- System Relief Valve
- Loader
- Removal and Installation
- Buckets
- Controls Linkage
- Frame
- Hydraulic System
- Backhoe
- Removal and Installation
- Buckets
- Control Linkage
- Frames
- Hydraulic System
- Ground Conditioning Tool
- Hydraulic System
- Dealer Fabricated Tools
- DF1053 Liner Holding Fixture
- Loader Boom Lock Bar
- DF1002 - Rolling Drag Torque Bar
- DF1003 - Round Mechanical Tubing Drive
- DF1004 - Driver
- DF1005 - Driver
- DF1006 - Driver
- DF1007 - Driver
- DF1008 - Driver
- DF1009 - Driver
- DF1010 - Driver
- DF1011 - Driver
- DF1012 - Driver
- DF1013 - Driver
