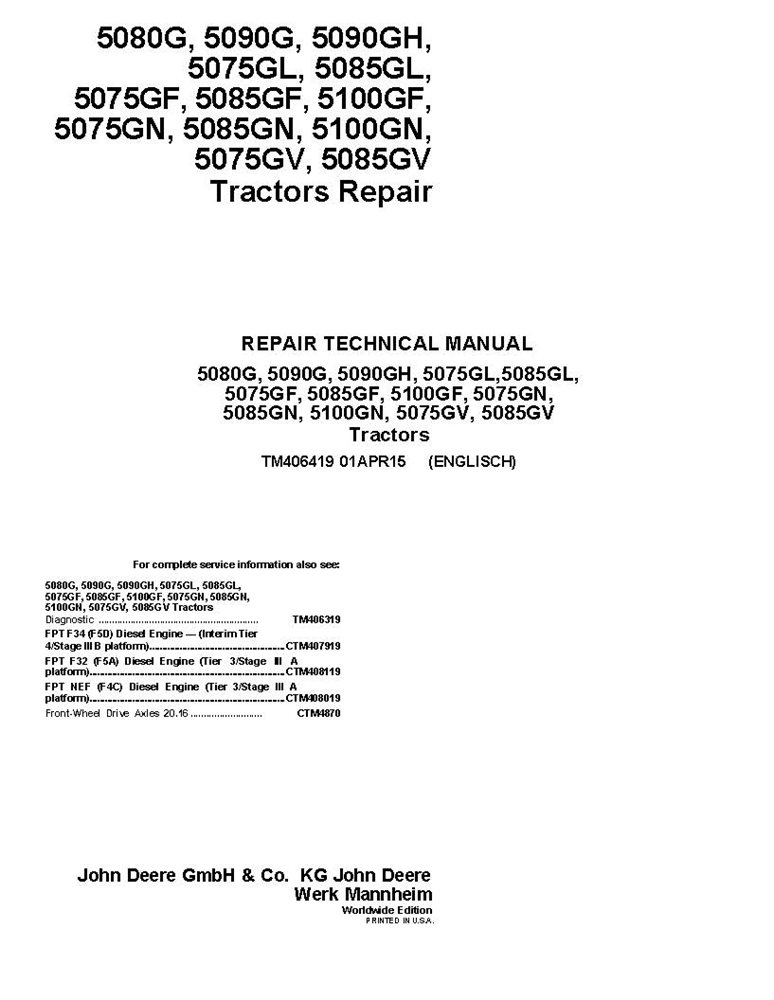

TM406419 John Deere 5075G, 5080G, 5085G, 5090G, 5100G - 5G Series tractor repair technical manual (TM406419)
English

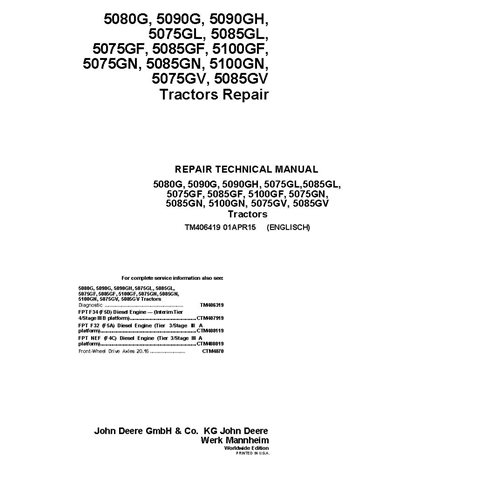

John Deere 5075G, 5080G, 5085G, 5090G, 5100G - 5G Series tractor repair technical manual (TM406419)

TM406419
$34.90
No tax

Item Number: TM406419

Models: 5080G, 5090G, 5090GH, 5075GL, 5085GL, 5075GF, 5085GF, 5100GF,5075GN, 5085GN, 5100GN,5075GV, 5085GV Tractors Diagnostic

Format: PDF

Type: Repair technical manual

Pages: 924

File size: 24.48 MB

Language: English

Date: April 2015

P.I.N.: MY up to 2016

TM406419-preview.pdf - 1.68MB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for TM406419 manual

  • 5080G, 5090G, 5090GH, 5075GL, 5085GL, 5075GF, 5085GF, 5100GF, 5075GN, 5085GN, 5100GN, 5075GV, 5085GV Tractors Repair
  • Contents
  • Foreword
  • Section 05 - Safety
    • Contents
    • - Safety Measures
  • Section 10 - General Information
    • Contents
    • - Specifications
    • - Tune-Up
    • - Predelivery Inspection
  • Section 20 - Engine
    • Contents
    • - Removal and Installation of EngineComponents
  • Section 30 - Fuel and Air Intake Systems
    • Contents
    • - Speed Control Linkage
    • - Fuel System
    • - Air Intake System
  • Section 40 - Electrical System
    • Contents
    • - Battery, Starter Motor, and Alternator
    • - Switches and Sensors
  • Section 50A - Drive Train (without Transmission)
    • Contents
    • - Component Removal and Installation
    • - Front-Wheel Drive Clutch - Transmission
    • - Differential
    • - Final Drives
    • - Power Take-Off
    • - Transmission Housing - Sensors
  • Section 50B - Mechanical Transmissions
    • Contents
    • - Removal and Installation of Power TrainComponents
    • - Clutch
    • - Hi-Lo Clutch (24/24-Speed Transmission)
    • - Transmission
  • Section 50C - Power Reverser Transmission (24-12)
    • Contents
    • - Removal and Installation of Components -24/12-Speed Transmission
    • - Electro-Hydraulic Forward High/Low andReverse Clutch - 24/12-Speed Transmission
  • Section 60 - Steering and Brake Systems
    • Contents
    • - Steering System
    • - Brake System
  • Section 70 - Hydraulic System
    • Contents
    • - Hydraulic Pump and Filter
    • - Hitch
    • - Three-Point Hitch
    • - Selective Control Valves
  • Section 80 - Miscellaneous
    • Contents
    • - Removal and Installation of Components
    • - Front Axle
    • - Front and Rear Wheels
    • - Trailer Mounting and Swinging Drawbar
    • - Fenders
  • Section 90 - Operator's Cab and Open Operator'sStation
    • Contents
    • - Remove and Install Operator's Cab/OpenOperator's Station
    • - Controls and Instruments
    • - Air-Conditioning System
    • - Heating System
    • - Operator's Cab
    • - Open Operator's Station
    • - Operator's Seat
  • Section 99 - Special Tools
    • Contents
    • - Special Tools (Dealer-Fabricated)
    • - Special Tools (Available as Spare Parts)
Language
English
Document type
Repair technical manual
Machinery type
tractor
TM406419-preview.pdf - 1.68MB

A Repair Technical Manual is a comprehensive service guide used by professional mechanics and service centers. It provides detailed, step-by-step instructions for the removal, installation, and overhaul of major machine components. While other manuals focus on operation, this document is dedicated to hands-on mechanical repair.

Inside this repair manual, you will find:

  • Disassembly and Assembly: Precise sequences for taking apart and putting back together engines, transmissions, and axles.

  • Torque Specifications: Exact bolt tightening values to ensure structural integrity and prevent component failure.

  • Component Overhaul: Clear guidelines on how to rebuild worn-out parts to factory-new standards.

  • Clear Illustrations: High-quality diagrams and exploded views for visual guidance during complex tasks.

Having the official Repair Technical Manual allows you to perform major repairs in-house, ensuring the highest level of precision and significantly reducing labor costs at the dealership.

The Benefits of Buying Our Digital Manuals

Instant Digital Access

Stop waiting for shipping. Receive a secure download link immediately after checkout. Get to work with your service manual right away.

OEM Quality

Our manuals are clear, searchable, and printable. Zoom in on complex hydraulic diagrams or wiring layouts without losing clarity.

Unlimited Hard Copies

Print the entire guide or just the specific schematics you need for the job. Take the paper into the grease and grime while keeping your digital original pristine and oil-free.

Multi-Device Compatibility

View your manual on any device - PC, Mac, tablet, or smartphone. Keep the technical data in your pocket while you're in the field.

Lifetime Storage Guarantee

Lost your file? No problem. Your purchased manuals are safely stored in your account for unlimited future downloads.

Need help finding a specific manual?

Not all of our documents are listed online yet, and we have an extensive offline catalog. If you can't find what you need, let us know the brand and model—our team will check our archives and get back to you!
