TM4436 John Deere 2155, 2355, 232155, 2355N, 2555, 2755, 2855N, 2955, 3155 tractor operation and test technical manual RU (TM...
Russian

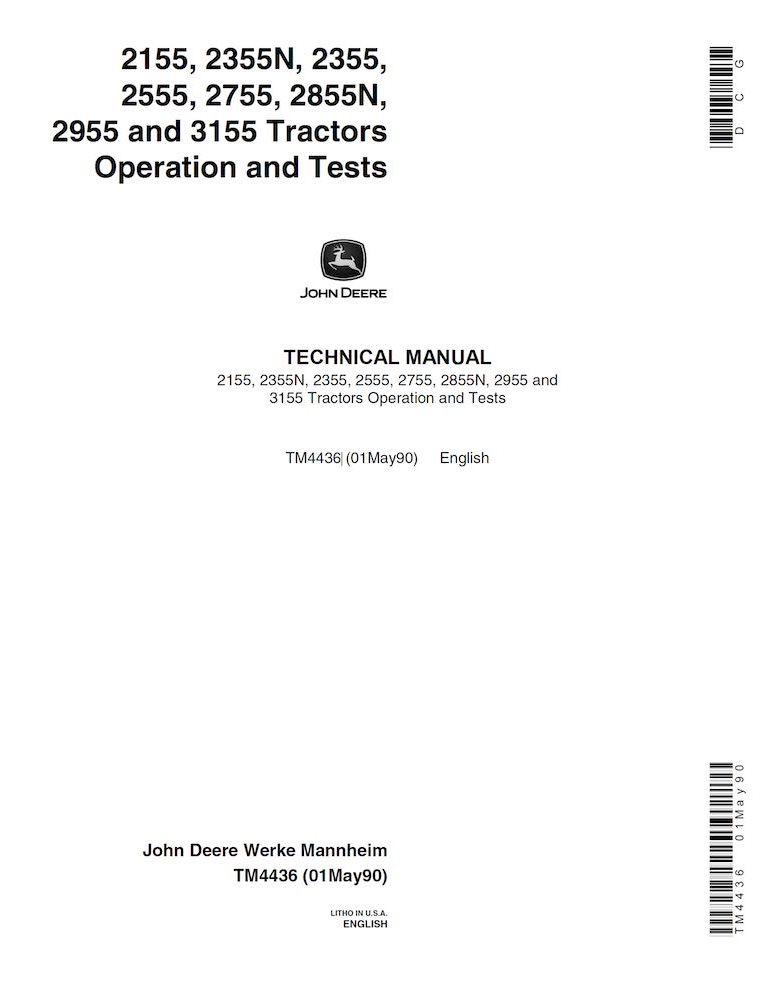

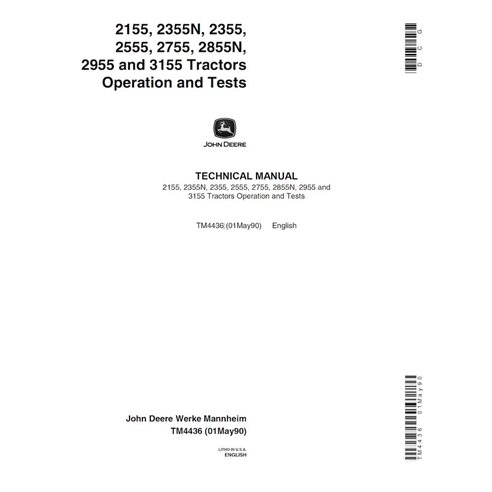

John Deere 2155, 2355, 232155, 2355N, 2555, 2755, 2855N, 2955, 3155 tractor operation and test technical manual RU (TM4436)

TM4436
$42.90
No tax

Format: PDF

Pages: 755

File size: 19.85 MB

Language: Russian

Models: 2155, 2355, 232155, 2355N, 2555, 2755, 2855N, 2955, 3155. TM4436S included.

JD-TM4436-EN-preview.pdf - 1.01MB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for TM4436 manual

  • 2155, 2355N, 2355, 2555, 2755, 2855N, 2955 and3155 Tractors Operation and Tests
  • SECTION CONTENTS IN GROUPS
  • 210 - Safety
  • 220 - Engine
    • 05 - Radiator and viscous fan drive
    • 10 - Tests
  • 230 - Fuel and Air Intake System
    • 05 - Fuel tank, auxiliary fuel tank and water trap
    • 10 - Cold weather starting aids
    • 15 -Speed control linkage
    • 20 - Air cleaner
  • 240 - Electrical System
    • 05 - General
    • 10 - Electrical diagrams (without SGB or BOPS)
    • 15 - Circuit diagnosis (without SGB or BOPS)
    • 16 - Electrical diagrams (GP tractors without SGB, from Serial No. 618 700L)
    • 17 - Circuit diagnosis (GP tractors without SGB, from Serial No. 618 700L)
    • 20- Electrical diagrams (with SGB or BOPS)
    • 25 - Circuit diagnosis (with SGB or BOPS)
    • 30 -Testing components
    • 35 - Starting motor
    • 40 - Alternator
  • 250 - Power Train
    • 05 - Clutch operating linkages
    • 10 - Engine single-stage clutch (without reverser)
    • 15 - Engine single-stage clutch (with reverser)
    • 20 - Engine dual-stage clutch
    • 25 - Hi-Lo shift unit
    • 30 - Reverser
    • 35 - Creeper transmission
    • 40 - Transmission shift linkages
    • 45 - Synchronized transmission and transmission oil pump
    • 50 - Collar shift transmission and transmission oil pumps
    • 55 - Differential
    • 60 - Final drives
    • 65 - Independent PTO
    • 70 - Continuous-running PTO
    • 75 - Front PTO
    • 80 - Front wheel drive u.j. drive shaft and disk clutch
  • 260 - Steering System and Brakes
    • 05 - HYDROSTATIC STEERING
    • 10 - POWER STEERING
    • 15 -HYDRAULIC BRAKES
    • 20 - HANDBRAKE
  • 270 Hydraulic System
    • 05 Operation and tests
    • 10 Valves, filters, oil cooler and oil reservoir
    • 15 Hydraulic pumps
    • 20 - ROCKSHAFT
    • 25 FRONT HITCH
    • 30 - SELECTIVE CONTROL VALVES (Spool Type)
    • 35 - SELECTIVE CONTROL VALVES (Poppet Valve Type)
    • 40 - ISO BREAKAWAY COUPLERS
    • 45 - ISO QUICK COUPLERS
    • 50 - REMOTE CYLINDER
  • 290 - Operator's Station
    • 05 - Air conditioning system
    • 10 - Cab ventilation and heating system
  • JD-TM4436suppl-EN
    • 2155 to 3255 Tractors Operation and Tests (Supplement)
    • 240-ELECTRICAL EQUIPMENT
    • 290-OPERATOR STATION
Document type
Technical manual
Language
Russian
Machinery type
tractor
JD-TM4436-EN-preview.pdf - 1.01MB

A Technical Manual is the definitive reference guide for understanding, maintaining, and repairing complex machinery. It goes beyond simple instructions by providing the theory of operation for every major system, including electrical, hydraulic, and mechanical components.

Key features of this technical documentation:

  • System Logic: In-depth explanations of how each system functions under various load conditions.

  • Testing & Adjustments: Procedures to verify that the equipment is operating within factory engineering specifications.

  • Detailed Schematics: Comprehensive diagrams for tracing circuits and fluid flows with high precision.

  • Component Data: Critical measurements and tolerances required for professional-grade maintenance.

This Technical Manual is an indispensable tool for anyone who needs a deep understanding of their equipment’s design and requires authoritative data for advanced troubleshooting and performance optimization.
