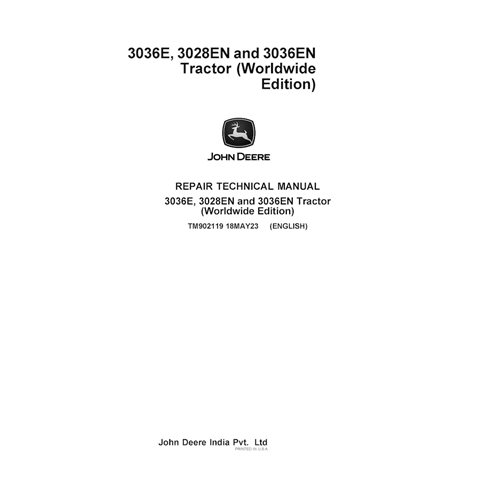

TM902119 John Deere 3036E, 3028EN and 3036EN tractor pdf repair technical manual (TM902119)
English

John Deere 3036E, 3028EN and 3036EN tractor pdf repair technical manual (TM902119)

TM902119
$33.90
No tax

Item Number: TM902119

Models: 3036E, 3028EN and 3036EN tractors

Format: PDF

Type: Repair technical manual

Pages: 1046

File size: 27.03 MB

Language: English

Date: May 2023

TM902119-preview.pdf - 1.83MB
Log in to access your free preview PDF

Try Before You Buy
Sign in or create a quick account in seconds to download a free preview PDF file, where you find "Bookmarks" tab to see the complete table of contents. Review the manual's layout, detail, and quality to ensure it’s exactly what you need.

Create an account and join to our cumulative discounts program. Spend at least $29.9 and get 10.00% discount.
Rating:
(0)


Table of Contents for TM902119 manual

  • Contents
  • Foreword
  • Safety
    • Contents
    • Safety
  • Engine
    • Contents
    • Specifications
    • Component Location
    • Theory of Operation
    • Diagnostics
    • Tests and Adjustments
    • Repair
    • Special Tools and Other Materials
  • Electrical System
    • Contents
    • General Information and Specification
    • Electrical System Component
    • Theory of Operation
    • Diagnosis, Tests and Adjustments
    • Electrical Repair
    • Electrical Schematics
    • Electrical Components and Connectors
  • Power Train-SyncReverser™
    • Contents
    • Specifications
    • Component Location
    • Theory of Operation
    • Diagnosis, Tests and Adjustments
    • Repair
  • Power Train-Final Drives
    • Contents
    • Specifications
    • Component Location
    • Theory of Operation
    • Diagnosis, Tests and Adjustments
    • Repair
  • Hydraulic System
    • Contents
    • Specification
    • Hydraulic System Components
    • Theory of Operation
    • Diagnosis, Tests and Adjustments
    • Hydraulic Schematics
    • Hydraulic Repair
  • Steering System
    • Contents
    • Specifications
    • Steering System Component
    • Theory of Operation
    • Diagnosis, Tests and Adjustments
    • Repair
  • Brake System
    • Contents
    • Specifications
    • Component Location
    • Theory of Operation
    • Diagnosis, Tests and Adjustments
    • Repair
  • Miscellaneous
    • Contents
    • Specifications
    • Front Axle Repair
    • Front Axle Repair (Heavy Duty 3036E)
    • Wheels Repair
    • Cowl
    • 3-Point Hitch
    • Troubleshooting
  • Operational Checkout Procedures
    • Contents
    • Operational Checkout Procedures
  • Operator Station
    • Contents
    • Seat and Support
    • Operator Platform
    • Fenders
    • Hood
    • Roll-Gard™
  • Special Tools
    • Contents
    • Dealer Fabricated Tools
Document type
Repair technical manual
Language
English
Machinery type
tractor
TM902119-preview.pdf - 1.83MB

A Repair Technical Manual is a comprehensive service guide used by professional mechanics and service centers. It provides detailed, step-by-step instructions for the removal, installation, and overhaul of major machine components. While other manuals focus on operation, this document is dedicated to hands-on mechanical repair.

Inside this repair manual, you will find:

  • Disassembly and Assembly: Precise sequences for taking apart and putting back together engines, transmissions, and axles.

  • Torque Specifications: Exact bolt tightening values to ensure structural integrity and prevent component failure.

  • Component Overhaul: Clear guidelines on how to rebuild worn-out parts to factory-new standards.

  • Clear Illustrations: High-quality diagrams and exploded views for visual guidance during complex tasks.

Having the official Repair Technical Manual allows you to perform major repairs in-house, ensuring the highest level of precision and significantly reducing labor costs at the dealership.
